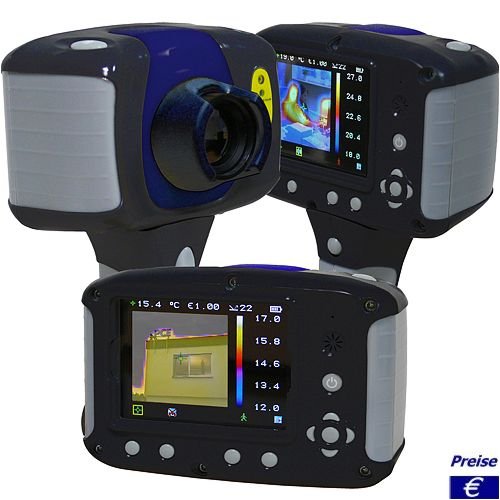

The PCE-TC 3 thermography camera offers a measurement accuracy of ±2ºC or ±2% within a temperature range of -10ºC to 250ºC, and wth a sensitivity of only 0.15ºC. Two moveable points can be manipulated in situ on the camera's colour display and show the corresponding temperature. With these top-of-the-range functions, irregularities can immediately be spotted and pertinant measures can be taken in situ. The integrated laser pointer allows for the device to be accurately aimed to ensure that the correct area is being measured.Software comes included and it does more than just allow for analysis of thermal images, it permits the user to generate reports without extensive knowledge of or experience using the device.
Technical specificationsTemperature range -10 to 250°C Sensor: uncooled focal plane array
Measurement points / Resolution 160 x 120 pixels (19,200 points)
Accuracy ±2°C or ±2%
Display resolution 192 x 192 pixels
Lens (FOV) 20° x 15°
Focus manual
Measurement distance 30cm to infinity
Measurement functions two moveable points, measures difference
Temperature resolution 0.15ºC
Image frequency 7.5 Hz
Spectral range 8 to 14µm
Emissivity 0.2 to 1.0 (adjustable in steps of 0.01)
Memory MMC or SD memory card
Port USB type B
Display 3.5" LCD, with back lighting and four adjustable colour palettes: rainbow, iron bow, hc rainbow and grey scale
Temperature units ºC, ºF or K
Laser pointer class II 1mW / 635nm
Operating temperature -15 to 45ºC
Storage temperature -20 to 70ºC
Air humidity 10 to 90% r.h. without condensation
Power ion-litium rechargeable
Operating time 4 to 6 hours
Enclosure plastic
Tripod screw 1/4"
Weight 750gr
Dimensions 230 x 120 x 110mm
ContentsPCE-TC 3 thermography camera , rechargeable battery, charger, hand strap, software, USB cable, SD memory card, carrying case and user's manual
Thermography Camera PCE-TC 3 / Thermal imaging camera / Thermometer / Pyrometer / Infrared thermometer / Infrared camera Specification
(65)
- -Memory card for up to 1000 images -Accurate measurement of temperature on the display -Two moveable measurement points -Automatically locates hot point, cold point and point of average value -Large 3.5" LCD with back lighting
- -Long operating time of up to 6 hours -High resolutio of 160 x 120 pixels -Temperature range: -10 to 250°C -Accuracy: maximum ±2°C or ±2%
- -Uncooled focal plane array for maintenance free work -Perfectly balanced, preventing wrist fatigue when used over extended periods.
- Ergonomic: Use it with one hand -Light weight: 750g -Laser pointer: Can be aimed exactly at the area to be measured
- -Data transfer of data: via the USB port to a computer -Software: to analyse data and easily generate detailed reports -Wide range of accessories
